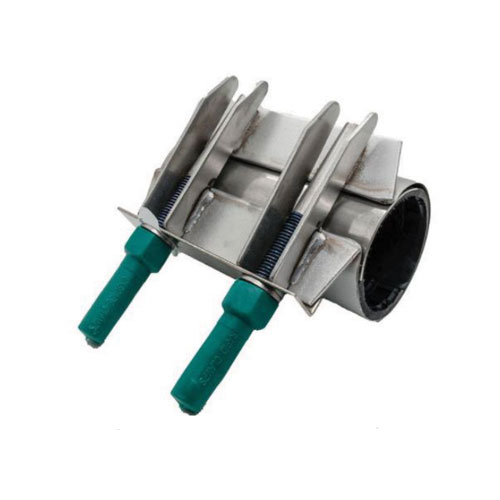

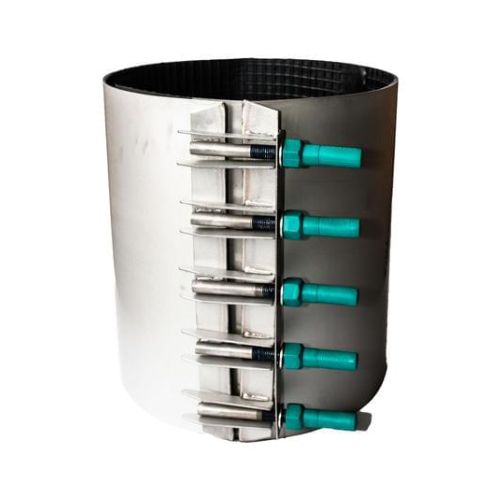

RAPID REPAIR CLAMPS (CR1, CR2, CR3)
RAPID REPAIR CLAMPS (CR1, CR2, CR3)
Our CR pipe repair clamp has been in use for over 30Yrs in many different industries and countries. Rapid CR clamps are a permanent and cost effective pipe repair solution. Available for pipe diameters from 40mm up to 2000mm, with clamp lengths from 150mm to 600mm long.
Click button for further information:
LOCKING WASHER PLATE
Stainless steel Type 316. Locks into position for easy tightening of nuts.
LUGS
Stainless steel Type 316. MIG-welded to receiver bar and fully passivized after welding. Leading edge is rounded to prevent them from catching bolt bars during installation.
SHELL
Stainless steel Type 316. 2B finish. Fully passivized after welding
BOLTS
Stainless steel Type 316. Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivized after welding.
NUTS/WASHERS
Stainless steel Type 316.
RECEIVER BARS
Stainless steel Type 316. TIG-welded to shell to form a strong fusion, and fully passivized after welding.

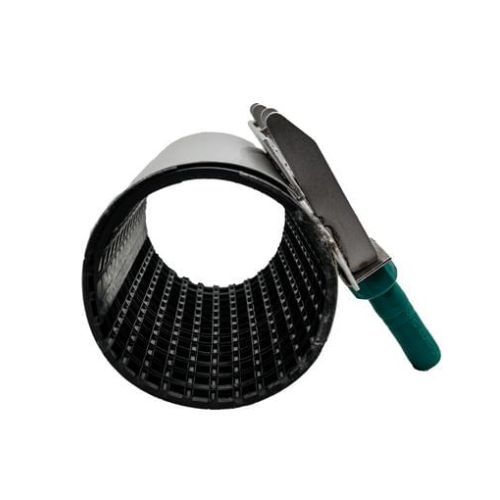

GASKET
Nitrile rubber is specially formulated for water service, gas and oil. Incorporating antioxidant agents to increase shelf life. All gaskets have a gridded design, tapered ends and vulcanized armor plates for easy installation and optimum sealing efficiency. Natural rubber is available on request.
ARMOUR
Stainless steel Type 316. Vulcanized into the gasket at the time of moulding.
